Huawei H153 Wireless Gateway Modem Router

Huawei H153 Wireless Gateway Modem Router

Be the first to review this product

Availability: In stock

RM1,005.00
OR

Quick Overview

NEW UNIT
HUAWEI H153 CPE 5s Wireless Gateway Modem Router. Max Download 3600Mbps / Max Upload 500Mbps. Connects 128 devices via Wi-Fi and connect 1 device via Gigabit Ethernet.

Huawei H153 Wireless Gateway Modem Router

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

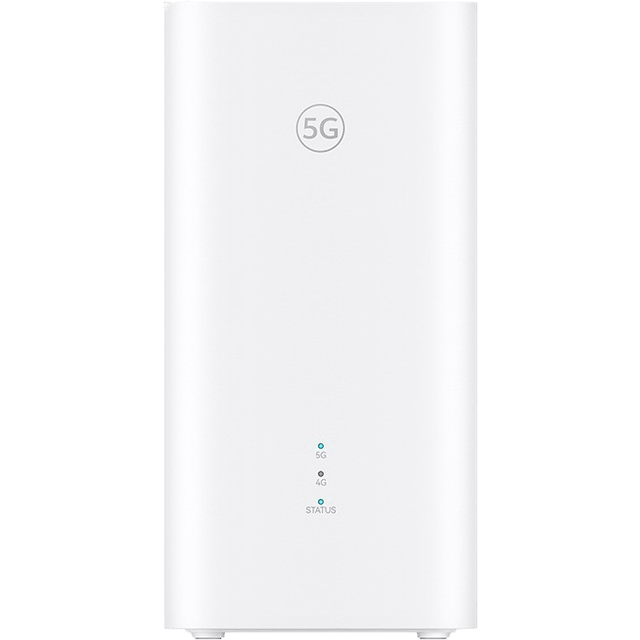

HUAWEI 5G CPE 5s H153-381 Wireless Gateway Modem Router

**Voice with VoLTE enabled
**Can lock band



Condition:

NEW UNIT



Features:

Able to connect via Wi-Fi and RJ45 connector

Supports wired and wireless network access

Supports up to 128 devices via Wi-Fi  and 2 devices via Gigabit Ethernet interface

One-touch connection and LED indicator display

Hassle free installation, just Plug-N-Play

Friendly user interface

SIM Lock released for usage with any 4G / 5G network worldwide

Unlimited operation time



Product Specs:

Wi-Fi 6 AX3000 4x4 MIMO

802.11a/b/g/n/ac/ax in 2 bands

IEEE 802.11b/g/n/a/ac/ax

2.4GHz and 5GHz

Data and SMS Service

Antenna gain 11dBi

Slot for Nano SIM 4FF sim card, 1 Power button, 1 WPS button, 1 RESET button

Led Indicator: 5G / 4G / Status

12dBi high gain 5G NR internal antenna

Key: Reset / WPS

External Antenna: NO External Antenna Port

Power consumption : < 24 W

AC/DC power supply : AC (input): 100V-240V 50Hz/60Hz, DC (output): 12V/2A

Maximum consumption: < 24 W

Operating temperature: 0°C to 40°C, storage temperature: -20°C to +70°C


Software:

Network Modes: Supports both Non-Standalone (NSA) and Standalone (SA) 5G modes.

Device Capacity: Capable of connecting up to 128 devices simultaneously via Wi-Fi, accommodating multiple users and devices

DHCP SERVER: Enables and disables the DHCP server. Configures DHCP server address pools. Sets the lease time.

VPN: Support L2TP VPN client, Support PPTP VPN client

SMS: Writing/sending/receiving extra-long messages

FIREWALL: Firewall enable/disable, URL filtering LAN IP filtering, Port forwarding (Virtual server), Port - triggering (Special Application) DMZ service, UPnP service, ALG settings

LAN: 10/100/1000/2500 Mbps auto-negotiate/MDIX auto-sensing IEEE 802.3/802.3u-compatible

Supports OpenSystem authentication

Supports encryption using wired-equivalent privacy (WEP)


Interface :

- 1 x SIM card slot (NANO SIM)

- 1 x Tel port (RJ11)

- 1 x WAN/LAN GE port


Transfer rate:

Max Download 3600Mbps / Max Upload 500Mbps


Bands:

5G :-

Download

- 4x4 MIMO : N1/3/7/38/39/40/41/77/78/79

- 2x2 MIMO : N5/8/20/28/75/80/81/82/83/84

Upload

- 2x2 MIMO : N1/38/40/41/77/78/79 (SA)


4G :

4x4 MIMO : B1/3/7/38/39/40/41/42/43

2x2 MIMO : B5/8/18/19/20/26/28/34


Network:

5G Bands (NR SA & NSA)

- FDD : N1 / N3 / N5 / N7 / N8 / N20 / N28

- TDD : N38 / N40 / N41 / N77 / N78

- SUL : N80 / N81 / N82 / N83 / N84

- SDL : N75


4G Bands (CAT 20- aggregation up to 5 frequencies at a time)

- B1 / B3 / B5 / B7 / B8/ B20 / B26 / B28 / B38 / B40 / B41 / B42 / B4


5G SPEED (4X4 MIMO) :

- Download Speed up to 3600 Mbit/s

- Upload Speed up to 500 Mbit/s


4G SPEED (4X4 MIMO CAT 20) :

- Download Speed up to 1200 Mbit/s

- Upload Speed to 150 Mbit/s


Dimensions:

- 90 mm (Top side length) x 96.6 mm (Bottom side length) x 181 mm (Height)


Weight:

- About 550 g (modem only)

- 950 g (with box)


SIM card type:

Nano SIM



Package:

1 x Huawei H153-381 modem

1 x Huawei power adapter (3 Pin)

1 x RJ45 cable

E-Manual & Original Packaging



Warranty:

1 year

1 to 1 change upon manufacturing defects*

*Subject to terms and conditions as stated in our FAQ
