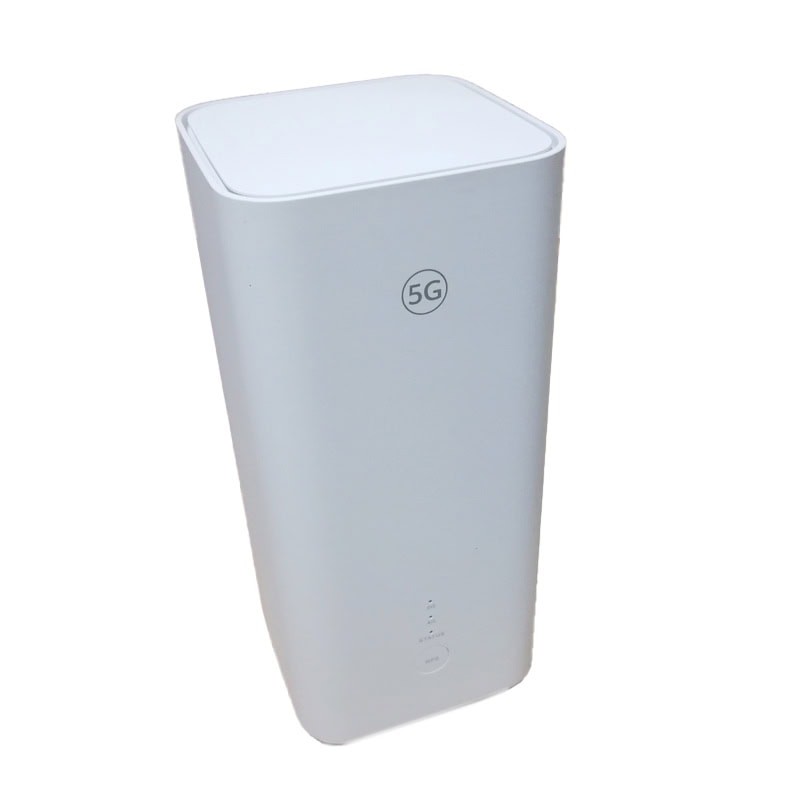

Huawei H158 Wireless Gateway Modem Router

HUAWEI 5G CPE PRO 5 H158-381 Wireless Gateway Modem Router

Condition:

NEW UNIT

Features:

Able to connect via Wi-Fi and RJ45 connector

Supports wired and wireless network access

Supports up to 128 devices via Wi-Fi  and 2 devices via Gigabit Ethernet interface

One-touch connection and LED indicator display

Hassle free installation, just Plug-N-Play

Friendly user interface

SIM Lock released for usage with any 4G / 5G network worldwide

Unlimited operation time

Product Specs:

Wi-Fi 6 AX7200 4x4 MIMO

802.11a/b/g/n/ac/ax in 2 bands

IEEE 802.11b/g/n/a/ac/ax

2.4GHz and 5GHz

128 connected users

Data and SMS Service

Antenna gain 11dBi

Slot for Nano SIM 4FF sim card, 1 Power button, 1 WPS button, 1 RESET button

Led Indicator: 5G / 4G / Status

12dBi high gain 5G NR internal antenna

Key: Reset / WPS

External Antenna: NO External Antenna Port

Power consumption : < 36 W

AC/DC power supply : AC (input): 100V-240V 50Hz/60Hz, DC (output): 12V/3A

Maximum consumption: < 36W

Operating temperature: 0°C to 40°C, storage temperature: -20°C to +70°C

Software :

Supports the default route: 0.0.0.0.

Supports manual configuration of LAN IP addresses

Supports Address Resolution Protocol (ARP)

DHCP SERVER: Enables and disables the DHCP server. Configures DHCP server address pools. Sets the lease time.

APN management

Supports NAT and NAPT (compliant with RFC2663, RFC3022, and RFC3027)

VPN : Support L2TP VPN client, Support PPTP VPN client

SMS : Writing/sending/receiving extra-long messages

FIREWALL: Firewall enable/disable, URL filtering LAN IP filtering, Port forwarding (Virtual server), Port - triggering (Special Application) DMZ service, UPnP service, ALG settings

LAN: 10/100/1000/2500 Mbps auto-negotiate/MDIX auto-sensing IEEE 802.3/802.3u-compatible

Supports OpenSystem authentication

Supports encryption using wired-equivalent privacy (WEP)

Supports a maximum of 64+64 connected stations

Transfer rate :

Max Download 5400Mbps / Max Upload 500Mbps

Band :

5G :-

Download
- 4x4 MIMO : N1/3/7/38/39/40/41/77/78/79
- 2x2 MIMO : N5/8/20/28/75/80/81/82/83/84

Upload
- 2x2 MIMO : N1/38/40/41/77/78/79 (SA)

4G :-

4x4 MIMO : B1/3/7/38/39/40/41/42/43
2x2 MIMO : B5/8/18/19/20/26/28/34

Network :

5G Bands (NR SA & NSA)
- FDD : N1 / N3 / N5 / N7 / N8 / N20 / N28
- TDD : N38 / N39 / N40 / N41 / N77 / N78 / N79
- SUL : N80 / N81 / N82 / N83 / N84
- SDL : N75

4G Bands (CAT 20- aggregation up to 5 frequencies at a time)
- B1 / B3 / B5 / B7 / B8/ B18 / B19 / B20 / B26 / B28 / B32 / B34/ B38 / B39 / B40 / B41 / B42 / B43

5G SPEED (4X4 MIMO) :
- Download Speed up to 5400 Mbit/s
- Upload Speed up to 500 Mbit/s

4G SPEED (4X4 MIMO CAT 20) :
- Download Speed up to 2000 Mbit/s
- Upload Speed to 150 Mbit/s

Dimensions :

 103 mm (Top side length) x 103 mm (Bottom side length) x 226 mm (Height)

Weight :

- About 850 g (modem only)
- 1350 g (with box)

SIM card type:

Nano SIM

Package:

1 x Huawei H158-381 modem

1 x Huawei power adapter

1 x RJ45 cable

E-Manual & Original Packaging>

This unit is made by Huawei for Zowee Technology

Warranty:

1 year

1 to 1 change upon manufacturing defects*

*Subject to terms and conditions as stated in our FAQ
