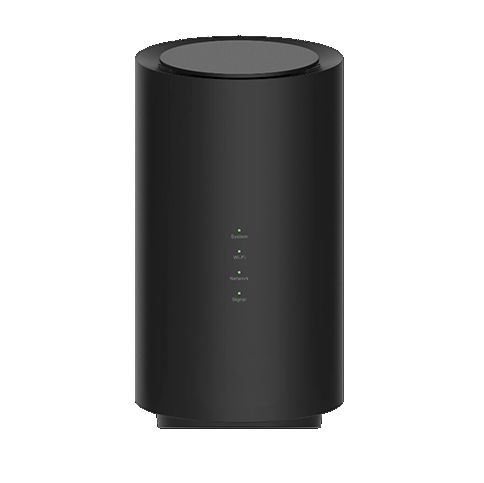

WNC DL5M2 Wireless Gateway Modem Router

WNC DL5M2 5G 4.7Gbps Ultra Fast WiFi 6 AX3600 (CAN'T MODIFY)

Condition :-

90% NEW UNIT

Features :-

Able to connect via Wi-Fi and RJ45 connector

Supports wired and wireless network access

Supports up to 64 devices via Wi-Fi and 4 devices via Gigabit Ethernet interface

One-touch connection and LED indicator display

Hassle free installation, just Plug-N-Play

Friendly user interface

SIM Lock released for usage with any 4G / 5G network worldwide

Unlimited operation time

Product Specs:

Processors :

• Modem/AP : MT6890 Quad-core ARM Cortex-A55 MPCoreTM @ 2.0 GHz

Memory :

• MCP (LPDDR4L 8Gb + NAND Flash 8Gb)

5G/4G Features :

• 3GPP Rel.15

• EN-DC option 3/3A/3X; SA option 2

• Sub-6GHz: 4.67Gbps DL@200MHz, 4x4 MIMO and 1.25Gbps UL@100MHz, 2x2 MIMO

• LTE Cat 19: 1.6Gbps DL@100MHz, 4x4 MIMO and 211Mbps, UL@40MHz, SISO

Ethernet :

• RJ45 1G BASE-T x 4

Wi-Fi :

• 5 GHz 802.11ax 4 ×4 MIMO

• 2.4 GHz 802.11ax 4 ×4 MIMO

• Dual Band Dual Concurrent, AX3600

Embedded Antenna :

• LTE x 6 pcs + Wi-Fi x 4 pcs

Other Interface Ports :

• LED x4 (System, Wi-Fi, Network, Signal)

• Button x3 (Reset, WPS, Power)

• NANO SIM Socket x1 (eSIMoption is reserved*)

Network :-

Sub-6 GHz Supported Bands :

• n1/3/7/38/40/77/78, MIMO 4x4

• n8/20/28, MIMO 2x2

• Modulation: UL: 256QAM; DL: 256QAM

4G Supported Bands :

• B1/3/7/32/38/40, MIMO 4x4

• B8/20/28, MIMO 2x2

• Modulation: UL: 256 QAM; DL: 256QAM

Software :-

Power :
• DC 12V/2.5A

Environmental :

• Operating Temperature: 0°C~40°C

Standard Approval :

• GCF/CE/RoHS Complaint & Green Policy

Transfer rate :-

Max Download 4700Mbps / Max Upload 1200Mbps

Dimensions :-

• Height: 199 mm, Diameter: 119 mm

Weight :-

Box with modem : 1.75kg

modem only : 0.9 kg

SIM card type:

Nano SIM

Package:

1 x WNC DLM2 5G

1 x Power Adapter (2 Pin)

E-manual provided

Warranty:

1 year

1 to 1 change upon manufacturing defect

*Subject to terms and conditions as stated in our FAQ
